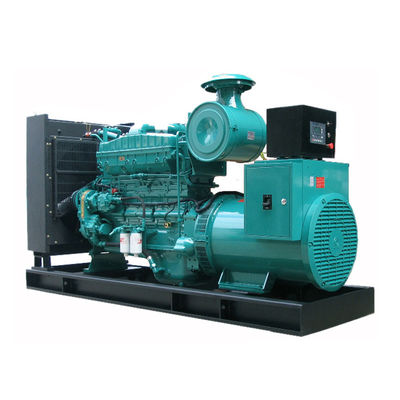

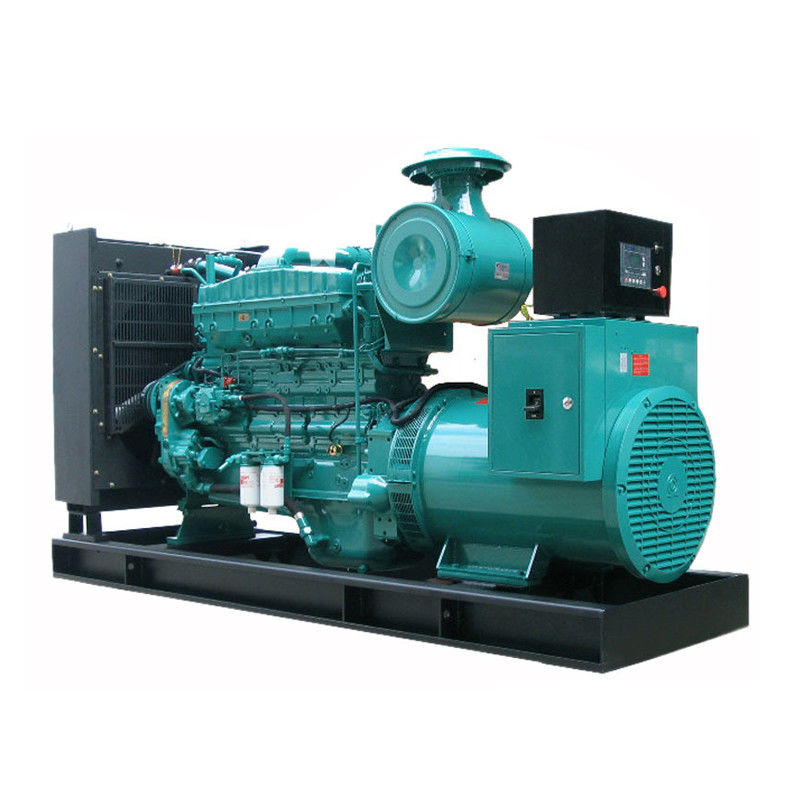

Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset

Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset

Nama merek:	Cummins
Nomor Model:	6LTAA8.9-G3
Moq:	1 pc
harga:	Price:Negotiable
Ketentuan Pembayaran:	Western Union, T/T, D/P, L/c
Kemampuan Penyediaan:	200 pcs/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO 9001:14000,CE,EACC

Tempat Asal::

JIANGSU China

Nama Merek::

Tegangan Dinilai::

230V/400V

Model mesin::

CUMMINS 6LTAA8.9-G3

Nilai saat ini::

Frekuensi::

50Hz/60Hz

Alternator::

Stamford S4L1D-D41

Panel kontrol::

Deepsea / Harsen / Smartgen

Sertifikat::

ISO 9001: 14000, CE

ATS::

Opsional

Pengiriman::

7-30 hari

Waktu Garansi::

1 tahun

Dimensi Genset::

5000 × 2300 × 2650mm

Berat Genset::

14000kg

Kecepatan::

1500rpm/1800rpm

Nomor Model::

MB-240

Kemasan rincian:

Plastik dibungkus dengan pembawa kayu sebagai persyaratan konsumen. Tersedia LCL, 20ft dan 40ft.

Menyediakan kemampuan:

200 pcs/bulan

Deskripsi Produk

High Quality Brushless Diesel Generator Sets With Cummins Engine Smartgen Control System Open/Soundproof Type

Genset Parameters

Genset
Model	MB-240
Output Power	300kVA/240KW
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	432A
Weight	3600KG
Dimensions	385013001850mm
Voltage	400/230
Frequency	50Hz
Diesel Engine
Manufacturer	Cummins Diesel Engine
Model	6LTAA8.9-G3
Rotate Speed	1500RPM
Power	230/250
Fuel Consumption	≤196g/kw.h
Lube Oil Capacity	27 L
Cylinder/Stroke	114×145 mm
Compression Ratio	16.6:1
Gas Displacement	8.9 L
Configuration	6-cylinder In-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Stamford Alternator
Model	S4L1D-D41
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Main Features
1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.
