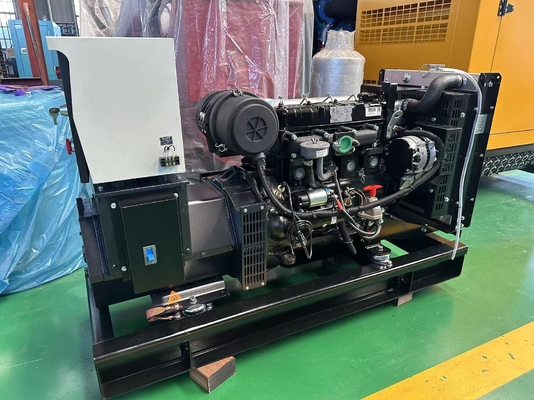

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz

Nama merek:	SDEC engine
Nomor Model:	MB-20
Moq:	1 pc
harga:	Price:Negotiable
Ketentuan Pembayaran:	Western Union, T/T, D/P, L/c
Kemampuan Penyediaan:	200 pcs/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

ISO 9001:14000,CE,EACC

Nama Merek::

SDEC Open Diesel Generator 20KW/25KVA

Tegangan Dinilai::

230V/400V

Model mesin::

4Z2.3-G21

Nilai saat ini::

36A

Frekuensi::

50Hz/60Hz

Alternator::

MBC20A

Panel kontrol::

Deepsea / Harsen / Smartgen

Sertifikat::

ISO 9001: 14000, CE

ATS::

Opsional

Pengiriman::

7-30 hari

Waktu Garansi::

1 tahun

Dimensi Genset::

1450 × 530 × 980mm

Berat Genset::

450kg

Kecepatan::

1500rpm/1800rpm

Nomor Model::

MB-40

Kemasan rincian:

Plastik dibungkus dengan pembawa kayu sebagai persyaratan konsumen. Tersedia LCL, 20ft dan 40ft.

Menyediakan kemampuan:

200 pcs/bulan

Deskripsi Produk

SDEC 4Z2.3-G21 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset
Model	MB-20
Output Power	20KW/25KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	36A
Weight	450kg (Net)
Dimensions	1450×530×980mm
Voltage	220v
Frequency	60Hz
Diesel Engine
Manufacturer	SDEC Diesel Engine
Model	4Z2.3-G21
Rotate Speed	1800RPM
Power	21/23KW
Fuel Consumption	≤ 225g/kw.h
Lube Oil Capacity	15 L
Cylinder/Stroke	85*100 mm
Compression Ratio	18:1
Gas Displacement	2.3L
Configuration	4-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC20A
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	220V, 60Hz, COSΦ=0.8 lagging, Single-phase
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz 3

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
