Likaduo 50KVA Open Diesel Generator Set with Good quality and 50Hz/60Hz Frequency

Likaduo 50KVA Open Diesel Generator Set with Good quality and 50Hz/60Hz Frequency

Nama merek:	Likaduo engine
Nomor Model:	MB-40
Moq:	1 buah
harga:	Price:Negotiable
Ketentuan Pembayaran:	Western Union, T/T, D/P, L/c
Kemampuan Penyediaan:	200 pcs/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

ISO 9001:14000,CE,EACC

Nama Merek::

Genset diesel Likaduo 40KW

Tegangan Dinilai::

230V/400V

Model mesin::

LKD40

Nilai saat ini::

72a

Frekuensi::

50Hz/60Hz

Merek alternator::

MBKL / WUXI Standford / Stamford / Leroy-Somer

Panel kontrol::

Deepsea / Harsen / Smartgen

Sertifikat::

ISO 9001: 14000, CE

ATS::

Opsional

Pengiriman::

7-30 hari

Waktu Garansi::

1 tahun atau 1000 jam lari (mana yang datang terlebih dahulu)

Kecepatan::

1500rpm/1800rpm

Kemasan rincian:

Plastik dibungkus dengan pembawa kayu sebagai persyaratan konsumen. Tersedia LCL, 20ft dan 40ft.

Menyediakan kemampuan:

200 pcs/bulan

Deskripsi Produk

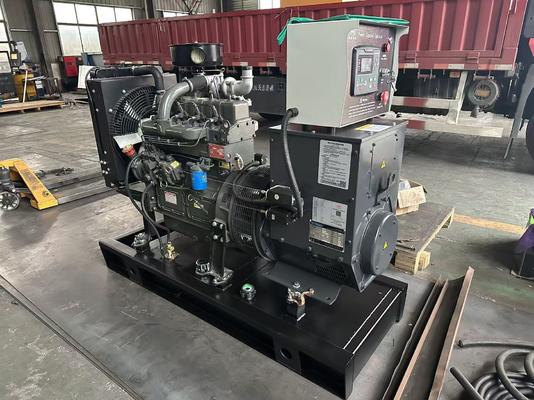

Likaduo 40KW Open Type Diesel Generator Set

Key Features:

Full control panel with power indicator light and oil light
Emergency shutdown for low oil pressure and high water temperature
Large fuel tank ensures continuous running
Low noise & vibration operation
Compact structure design
Reliable performance
Easy installation and maintenance

Painting Process:

Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.

Generator Specifications:

Model	MB-40
Output Power	40KW / 50KVA
Power Factor	COSΦ=0.8 (lagging)
Maximum Output Current	72 A
Weight	700KG
Dimensions	17005801250mm
Voltage	400/230V
Frequency	50Hz

Diesel Engine Specifications:

Manufacturer	Likaduo Diesel Engine
Model	LKD40
Rotate Speed	1500RPM
Power	56KW
Fuel Consumption	≤258g/kw.h
Cylinder/Stroke	100/115mm
Compression Ratio	19:1
Displacement	3.61L
Configuration	4-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter

Alternator Specifications:

Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC22B
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Power Range Compatibility:

Rated Power	Engine	Alternator	Control Panel
24kw~1500kw	Cummins	Stamford, Leroy somer, Marathon, Mecc alte, ABB, Chinese alternators	Deepsea, ComAp, Harsen, Smartgen
36kw~1800kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Our Manufacturing Capabilities

Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins, with over 80 years of experience, is a world-leading supplier of diesel and gas engines in the 4 - 1800 kW market. Their key strength lies in customizing engines to precisely meet customer requirements, making their solutions trusted by over 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and power generation markets.

Our factory partners with world-renowned engine manufacturers including CCEC, DCEC, VOLVO, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, and Jichai. With over 20 years of specialization in synchronous 100% copper wire alternators, our MB brand alternators have gained global recognition. Our generator power range spans from 6.5KW to 2000KW.

For more details about our diesel generator sets, please contact us anytime.

Your further inquiries are always welcome!
