High-Performance 100kw/125kVA Diesel Generator for Reliable Power Supply

High-Performance 100kw/125kVA Diesel Generator for Reliable Power Supply

Nama merek:	Likaduo engine
Nomor Model:	MB-100
Moq:	1 buah
harga:	Price:Negotiable
Ketentuan Pembayaran:	Western Union, T/T, D/P, L/c
Kemampuan Penyediaan:	200 buah/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001:14000,CE,EACC

Nama Merek::

Genset diesel Likaduo

Nilai Tegangan::

230V/400V

Model Mesin::

LKD6105AZLD

Nilai Saat Ini::

180 A

Frekuensi::

50Hz/60Hz

Merek alternator::

MBKL / WUXI Standford / Stamford / Leroy-Somer

Panel kontrol::

Deepsea / Harsen / Smartgen

Sertifikat::

ISO 9001: 14000, CE

ATS::

Opsional

Pengiriman::

7-30 hari

Waktu Garansi::

1 tahun atau 1000 jam lari (mana yang datang terlebih dahulu)

Kecepatan::

Disesuaikan

Kemasan rincian:

Plastik dibungkus dengan pembawa kayu sebagai persyaratan konsumen. Tersedia LCL, 20ft dan 40ft.

Menyediakan kemampuan:

200 buah/bulan

Deskripsi Produk

125kVA diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset
Model	MB-100
Output Power	100KW /125KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	180 A
Silent type Weight	1584KG
Silent type Dimensions	290013001750mm
Voltage	400/230
Frequency	50Hz
Diesel Engine
Manufacturer	Likaduo Diesel Engine
Model	LKD6105AZLD
Rotate Speed	1500RPM
Power	110/121KW
Fuel Consumption	≤232g/kw.h
Cylinder/Stroke	105/130mm
Compression Ratio	16:1
Displacement	6.75L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC27B
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

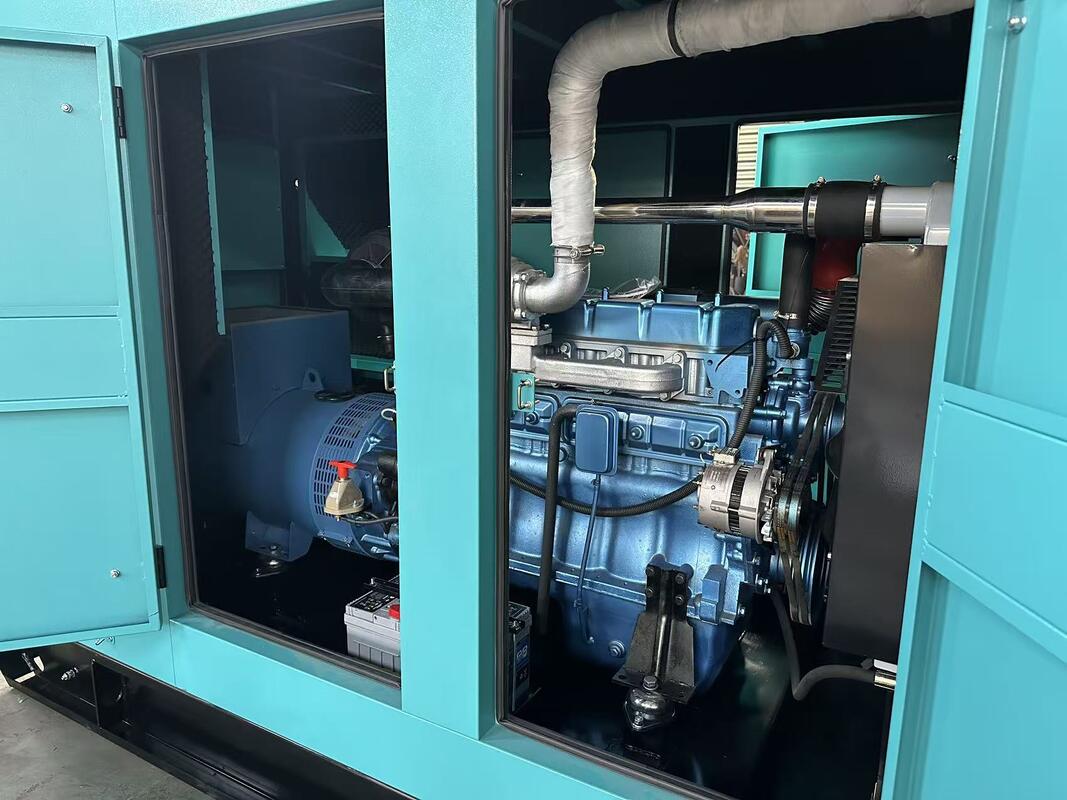

High-Performance 100kw/125kVA Diesel Generator for Reliable Power Supply 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

High-Performance 100kw/125kVA Diesel Generator for Reliable Power Supply 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

High-Performance 100kw/125kVA Diesel Generator for Reliable Power Supply 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
